Mini Excavators

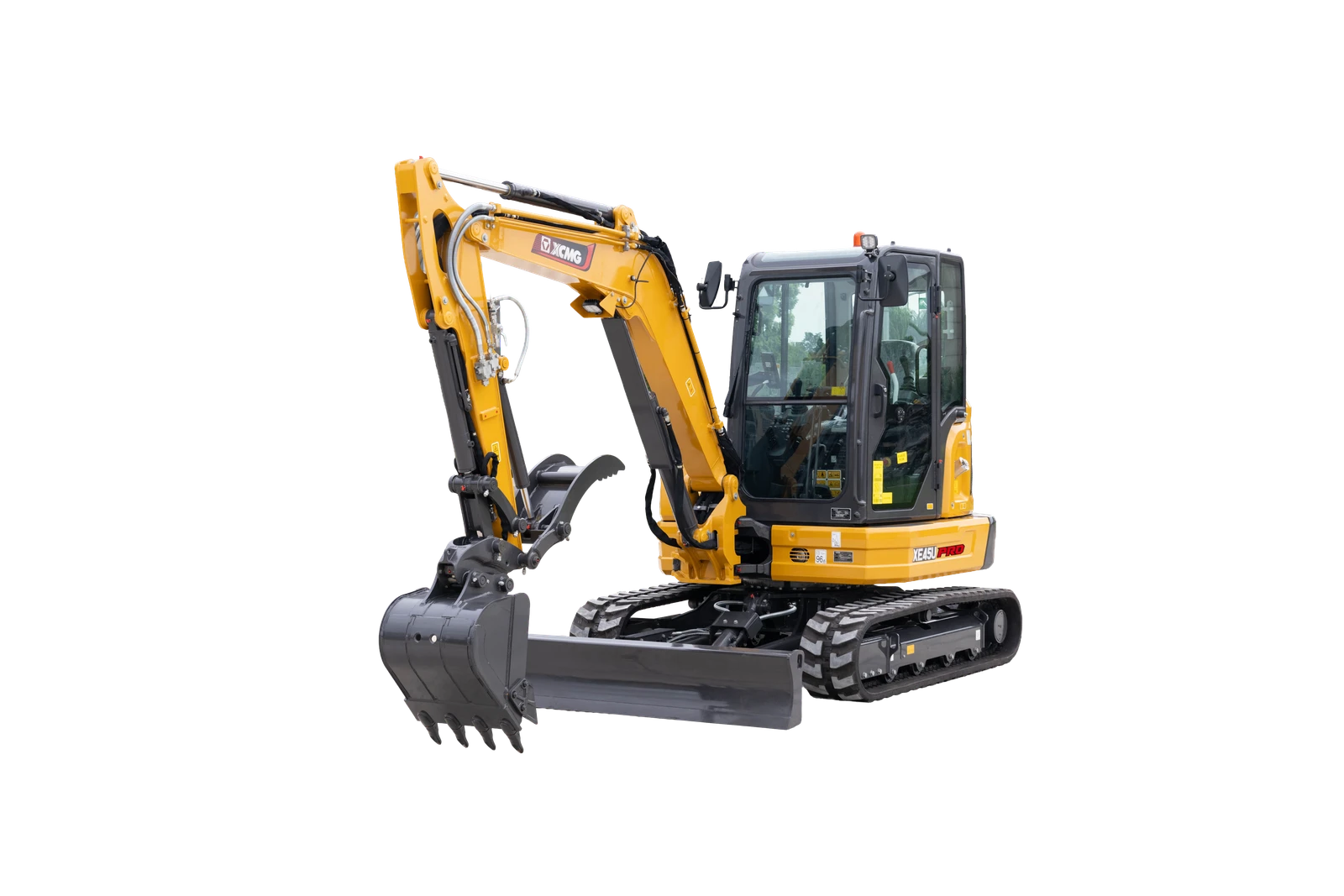

XE45U
Designed for versatility and strength, the XE45U delivers outstanding performance across landscaping, municipal, and general construction applications.
- Net Power
- 39.8 hp (29.7 kW)
- Operating Weight
- 10582 lb (4,800 kg)
- Maximum Digging Depth
- 10 ft 11 in (3.33 m)
- Overall Width
- 6 ft 1 in (1.85 m)
Or call 403-523-0488. Backed by our Uptime Guarantee™*.
Overview
Designed for versatility and strength, the XE45U delivers outstanding performance across landscaping, municipal, and general construction applications. Its large-angle swing boom, load-sensing hydraulics, and powerful Kubota engine provide smooth control, strong lifting capability, and high efficiency in confined jobsites. With enhanced stability, easy service access, and a modern operator-focused cab, the XE45U is built to maximize productivity and uptime.
Who it is for
Landscape companies, construction contractors, agriculture and feedlot operations, municipalities, and rental fleets.
Key features
- Powerful 39.8hp T4F Kubota turbo charged engine meets high demands.
- Variable angle boom (70° and 53°) makes it more flexible.
- Standard auxiliary hydraulic lines for versatility.
- Auxiliary system flow and pressure are adjustable.
- Grouped design of maintenance parts makes service easier.
- Mechanical suspension seat for better operator comfort.
- 7 inch screen provides better human machine interface.
Applications
- Digging
- Trenching
- Grading
- Demolition
- Landscaping
- Site development
- Drainage work
Specifications
- Net Power
- 39.8 hp (29.7 kW)
- Operating Weight
- 10582 lb (4,800 kg)
- Maximum Digging Depth
- 10 ft 11 in (3.33 m)
- Overall Width
- 6 ft 1 in (1.85 m)
- Bucket digging force
- 7,643 lbf (34 kN)
- Maximum Hydraulic Flow
- 34.9 gpm (132.1 L/min)
- Track Shoe Width
- 14 in (356 mm)
Manufacturer Specifications
- Engine
- Kubota/D1803/T4F
- Standard bucket capacity
- 0.14 yd³ (0.11 m³)
- Maximum digging reach
- 18.75 ft (5,715 mm)
- Maximum dumping height
- 13.29 ft (4,052 mm)
- Travel speed (low - high)
- 1.6 - 3.1 mph (2.6 - 5 km/h)
Manufacturer Dimensions
- Overall length
- 17.22 ft (5,250 mm)
- Overall height
- 8.32 ft (2,535 mm)
- Minimum tail swing radius
- 3.99 ft (1,215 mm) / 4.33 ft (1,320 mm) extra weight
