Mini Excavators

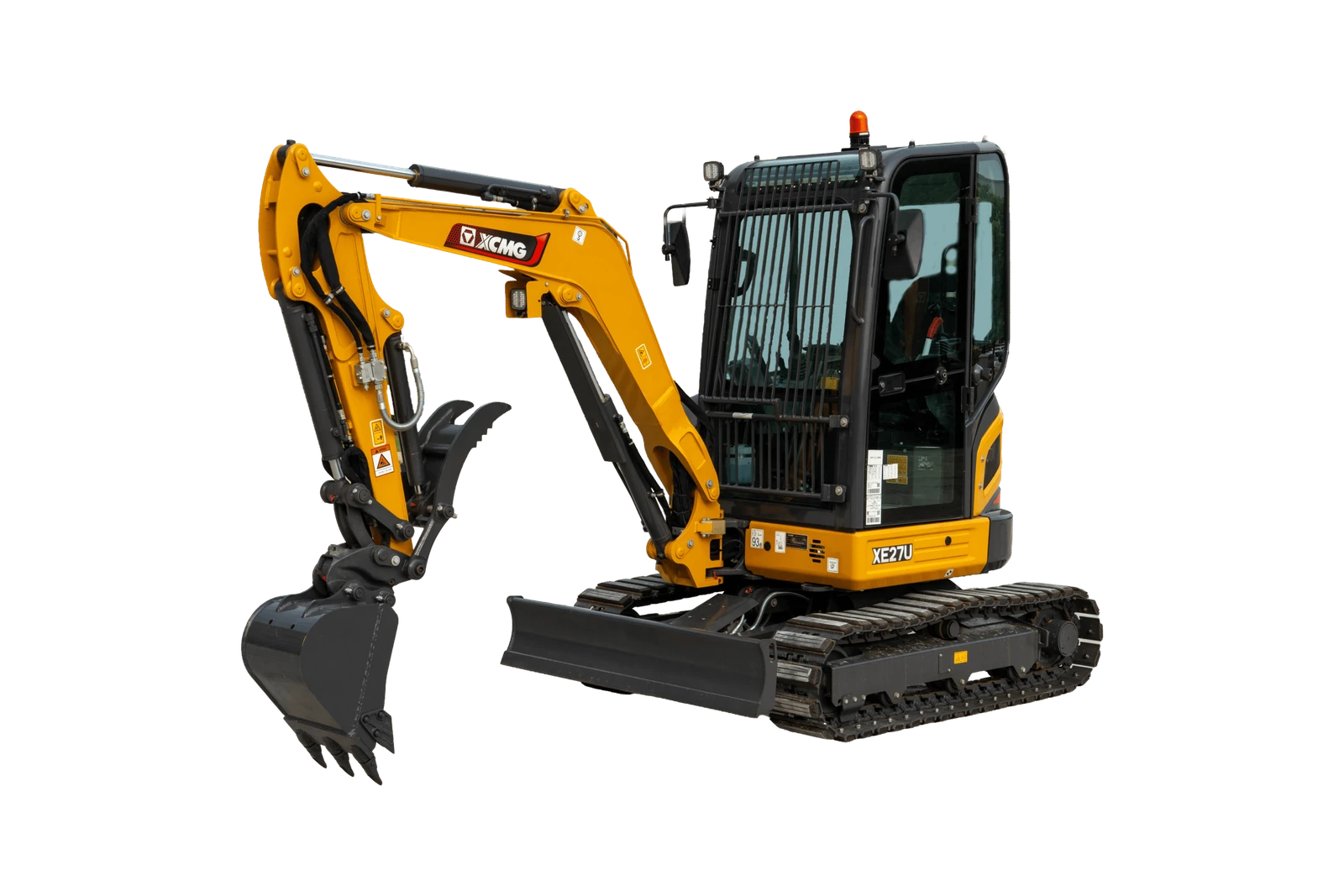

XE27U
Compact yet powerful, the XE27U delivers strong performance in confined jobsites.
- Net Power
- 20.7 hp (15.4 kW)
- Operating Weight
- 6129 lb (2,780 kg)
- Maximum Digging Depth
- 9 ft 2 in (2.79 m)
- Overall Width
- 4.9 ft (1.49 m)
Or call 403-523-0488. Backed by our Uptime Guarantee™*.
Overview
Compact yet powerful, the XE27U delivers strong performance in confined jobsites. With a reduced tail swing, wide-angle boom offset, and responsive hydraulics, it offers precise control for urban, landscaping, and utility work. A fuel-efficient Kubota Tier 4 Final engine, easy ground-level service access, and a comfortable operator environment make the XE27U a reliable, low-cost machine built for productivity.
Who it is for
Landscape companies, construction contractors, agriculture and feedlot operations, municipalities, and rental fleets.
Key features
- Powerful 20.7 hp T4F Kubota engine meets high demands.
- Variable angle boom (72°and 55°) makes it more flexible.
- Standard auxiliary hydraulic lines for versatility.
- Large color screen with comprehensive information.
- Mechanical suspension seat for better operator comfort.
- Reinforced structural parts improve reliability.
- Grouped maintenance parts reduce labor hours.
Applications
- Digging
- Trenching
- Grading
- Demolition
- Landscaping
- Site development
- Drainage work
Specifications
- Net Power
- 20.7 hp (15.4 kW)
- Operating Weight
- 6129 lb (2,780 kg)
- Maximum Digging Depth
- 9 ft 2 in (2.79 m)
- Overall Width
- 4.9 ft (1.49 m)
- Bucket digging force
- 5,171 lbf (23 kN)
- Maximum Hydraulic Flow
- 21.9 gpm (82.9 L/min)
- Track Shoe Width
- 12 in (305 mm)
Manufacturer Specifications
- Engine
- Kubota/D1105/Tier 4F
- Operating weight, with canopy
- 5,908 lb (2,680 kg)
- Standard bucket capacity
- 0.08 yd³ (0.06 m³)
- Maximum digging radius
- 15.58 ft (4,750 mm)
- Maximum dumping height
- 10.24 ft (3,120 mm)
- Travel speed (low - high)
- 1.5 - 2.2 mph (2.4 - 3.6 km/h)
Manufacturer Dimensions
- Overall length
- 13.75 ft (4,190 mm)
- Overall height
- 8.46 ft (2,580 mm)
- Minimum tail swing radius
- 2.59 ft (790 mm)
In stock now
No XE27U on the yard right now. Tell an advisor what the job is and we will tell you what it takes to get one, or show you the machine that fits it today.
See the XE27U on your own job.
We will bring one out for the day, with no deposit and no complicated rental agreement. Or talk the size through with an advisor first.
Ask about the XE27U
Your details go to the Foothills Equipment team at the location you pick, and an advisor will reach out to talk through the machine and the job.
Send an inquiryor call 403-523-0488
